TANK WASHING SPRAY NOZZLES

Suited for CIP systems. No motor source is needed due to the reaction force of the cleaning liquid to rotate spray head. Low pressure for cleaning and rinsing application. For rinsing small and medium sized vessels for example dairy, chemical, pharmaceutical and food industries. Material of construction-corrosion resistance TEFLON.

Application : Cleaning of tanks up to 3 m in diameter. Self - rotating. Double bearings.

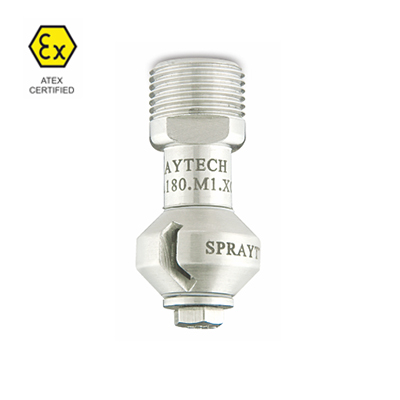

EA SERIES

FEATURES : Compact design suitable for Cleaning small vessel/tanks.
SPRAY ANGLE : 180°, 270°, 360°
CLEANING DIAMETER : Upto 1.5 M
TYPE : Self - rotating.
MATERIAL : SS304, SS316, PTFE

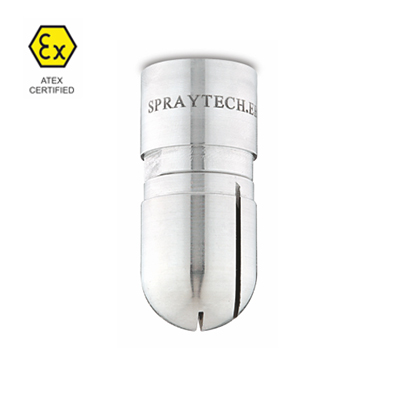

EB SERIES

FEATURES : Compact design suitable for Cleaning small vessel/tanks.
SPRAY ANGLE : 180°, 270°
CLEANING DIAMETER : Upto 1.5 M
TYPE : Self - rotating.
MATERIAL : SS304, SS316

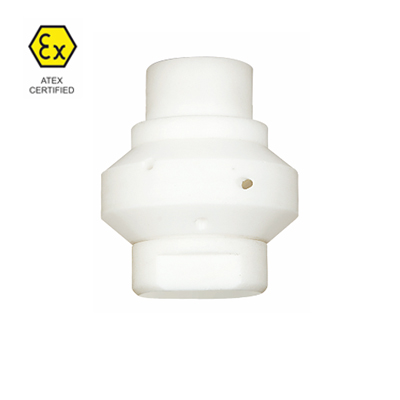

EC SERIES

FEATURES : Jet type spray pattern, Best suitable For Glass lined reactors.
SPRAY ANGLE : 270°, 360°
CLEANING DIAMETER : Upto 2.5 M
TYPE : Self - rotating.
MATERIAL : SS304, SS316, PTFE

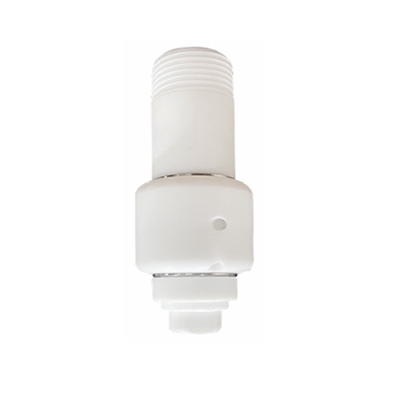

ECB SERIES

FEATURES : Jet type spray pattern, Best suitable For Glass lined reactors.
SPRAY ANGLE : 270°, 360°
CLEANING DIAMETER : Upto 2.5 M
TYPE : Self - rotating.
MATERIAL : SS304, SS316, PTFE

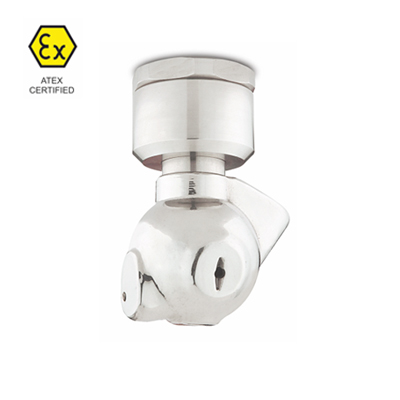

ED SERIES

FEATURES : Flat spray tips for high impact cleaning.
SPRAY ANGLE : 270°, 360°
CLEANING DIAMETER : Upto 2.5 M
TYPE : Self - rotating.
MATERIAL : SS304, SS316

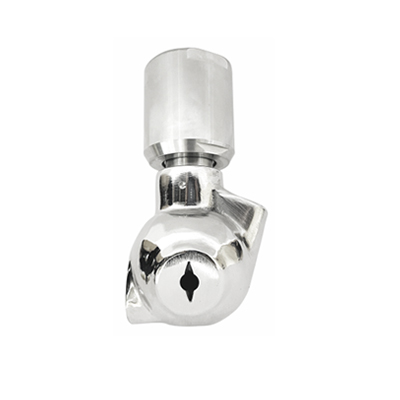

EDB SERIES

FEATURES : Flat spray tips for high impact cleaning.
SPRAY ANGLE : 270°, 360°
CLEANING DIAMETER : Upto 2.5 M
TYPE : Self - rotating.
MATERIAL : SS304, SS316

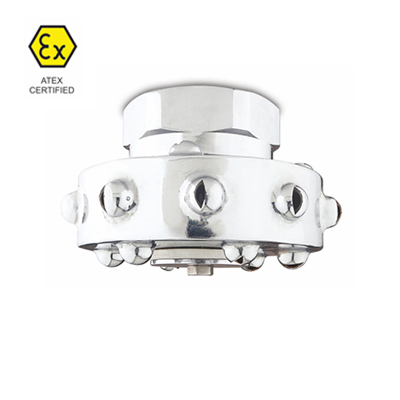

EE SERIES

FEATURE : Suitable for Large vessel, High impact cleaning with maximum reach.
SPRAY ANGLE : 180°, 270°, 360°
CLEANING DIAMETER : Upto 4 M
TYPE : Self - rotating.
MATERIAL : SS304, SS316

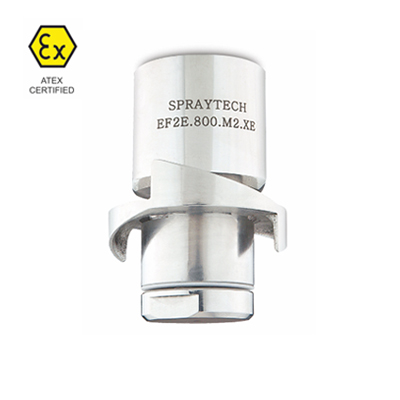

EF SERIES

FEATURES : Unique rotating disc design. Best suitable for FBD, FBP, FBC.
SPRAY ANGLE : 180°, 360°
CLEANING DIAMETER : Upto 2 M
TYPE : Self - rotating.
MATERIAL : SS304, SS316

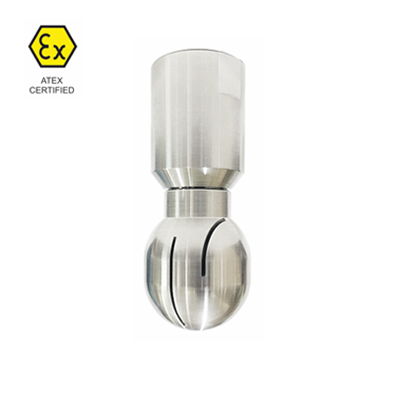

EG SERIES

FEATURES : Double sided bearing for effortless rotation Best suitable for SS reactors, Pharmaceutical Vessels.
SPRAY ANGLE : 270°, 360°
CLEANING DIAMETER : Upto 2.5 M
TYPE : Self - rotating.
MATERIAL : SS304, SS316

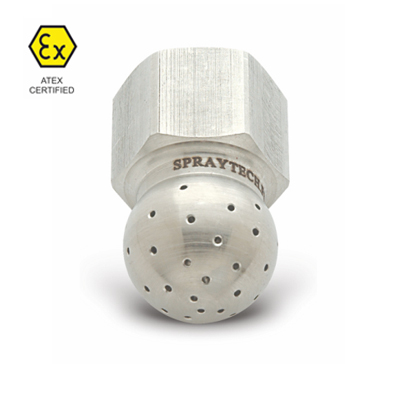

EH SERIES

FEATURES : Uni body design Multiple orifice for high impact jet spray.
SPRAY ANGLE : 180°, 270°
CLEANING DIAMETER : Upto 1.5 M
TYPE : Stationary
MATERIAL : SS304, SS316, PTFE

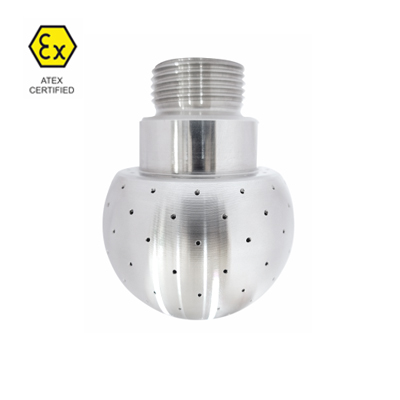

EI SERIES

FEATURES : Uni body design, Multiple jet spray with high flow.
SPRAY ANGLE : 180°, 270°, 360°
CLEANING DIAMETER : Upto 2.5 M
TYPE : Stationary
MATERIAL : SS304, SS316

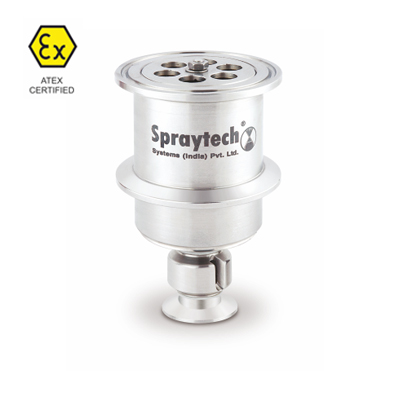

EK SERIES

FEATURES : Unique retractable type pop up nozzle Best suitable for isolators.
SPRAY ANGLE : 270°
CLEANING DIAMETER : Upto 1 M
TYPE : Self - rotating, Retractable
MATERIAL : SS304, SS316

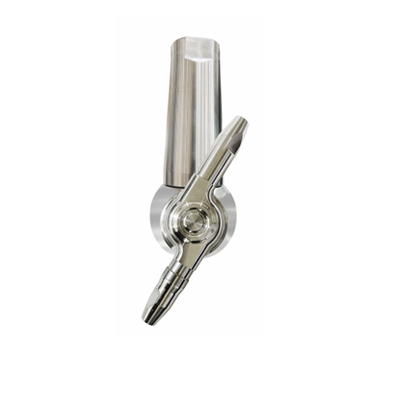

EL SERIES

FEATURES : High impact Double jet with controlled rotation. Best suitable tanks above 4 meters
SPRAY ANGLE : 360°
CLEANING DIAMETER : Upto 20 M
TYPE : Self - rotating (Gear driven)
MATERIAL : SS316

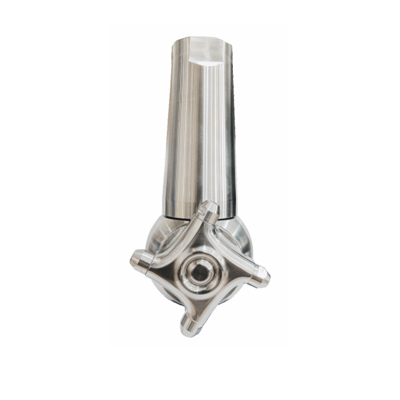

EM SERIES

FEATURES : High impact Four jet with controlled rotation. Best suitable tanks above 3 meters
SPRAY ANGLE : 360°
CLEANING DIAMETER : Upto 18 M
TYPE : Self - rotating (Gear driven)
MATERIAL : SS316

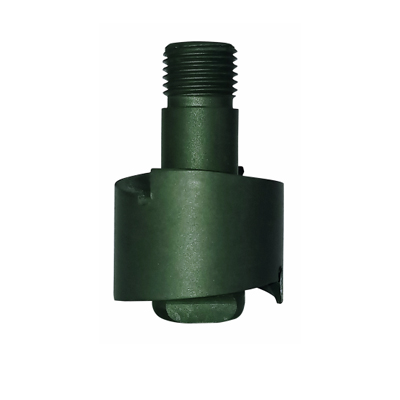

EN SERIES

FEATURES : Unique rotating disc design.
SPRAY ANGLE : 360°
CLEANING DIAMETER : Upto 2 M
TYPE : Self - rotating
MATERIAL : SS316, C-PTFE

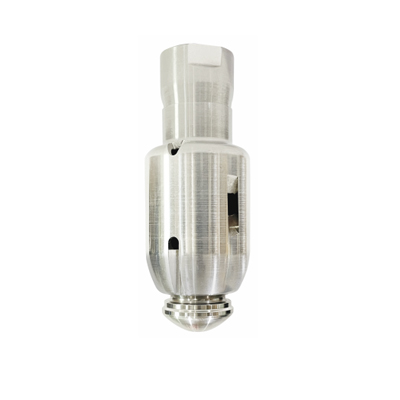

EP SERIES

FEATURES : Compact design with flat slit for high impact spray
Spray Angle : 360°
CLEANING DIAMETER : Upto 1.5 M
TYPE : Self - rotating.
MATERIAL : SS316
